'Huth' Fastener Stiffness

This page calculates the fastener Huth stiffness.

Input Data

Single or double shear?cis =
Joint Type :ass =
Fastener diameter : dia = in
Thickness of sheet 1 : t1 = in
Thickness of sheet 2 : t2 = in
Young's modulus of sheet 1 :E1 = psi
Young's modulus of sheet 2 :E2 = psi
Young's modulus of fastener :Ef = psi

Results

Press Calculate to run the numbers ...



     kHUTH = 1/C =

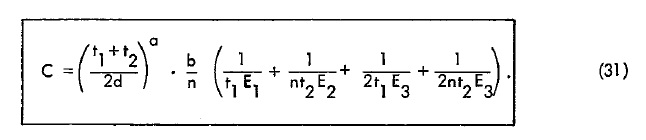

NB This calculator uses equation 31 of reference 1 (reproduced below) which differs slightly from equation 1 of reference 2. The latter is thought to be an erroneous translation. Several discussions on the error in reference 2 are available on the eng-tips.com website, refs 3, 4 and 5.

References

  1. Huth H, "Zum Einflu╬▓ der Nietnachgiebigkeit mehrreihiger Nietverbindungen auf die Last├╝bertragungs und Lebensddauervorhersage" Bericht Nr. FB-172 (1984).
  2. Huth H, "Influence on Fastener Flexibility on the Prediction of Load Transfer and Fatigue Life for Multiple-Row Joints" ASTM STP 927 (1986).
  3. Eng-Tips : Huth Formula for Fastener Flexibility
  4. Eng-Tips : Huth Fastener Flexibility
  5. Eng-Tips : Huth Formula for Fastener Flexibility
